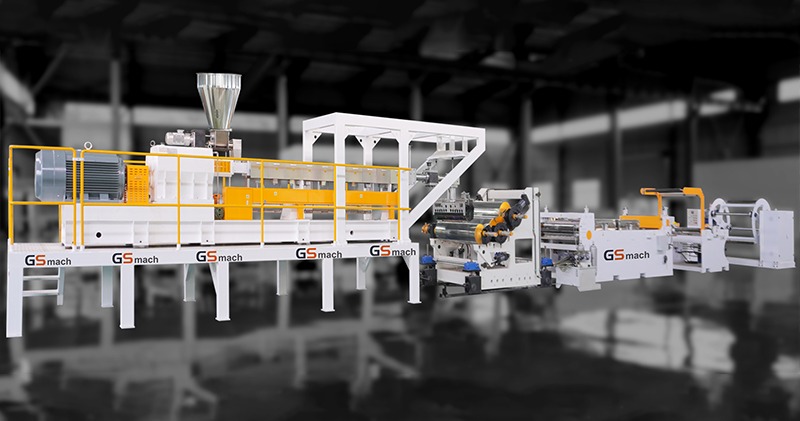

PVC Sheet Extruder Machine

PVC sheets come in various formulations, including rigid and flexible variations, depending on the application requirements. The specific properties of PVC sheets, such as their chemical resistance, durability, and cost-effectiveness, contribute to their widespread use in different industries.

• Components of a PVC Sheet Extruder Machine:

  1. Hopper:The hopper is a container that holds the PVC resin pellets, feeding them into the extruder for processing.

  2. Twin Screw Extruder:The core component of the extruder machine is the twin screw extruder. In this part, the PVC resin is melted through heating and pressure applied by the rotating screw. The design of the screw is critical for achieving proper melting and mixing of the material.

  3. Screen Changer:A screen changer is used to filter out impurities and contaminants from the melted PVC resin, ensuring a clean and uniform material flow.

  4. Extrusion Die:The extrusion die is a tool that shapes the molten PVC resin into a flat sheet. It determines the width and thickness of the extruded sheet.

  5. Cooling System:After exiting the die, the hot PVC sheet needs to be rapidly cooled to solidify. This is typically achieved using a cooling system, which may involve air or water cooling.

  6. Thickness Control System:A thickness control system is employed to ensure uniform thickness across the width of the PVC sheet. This is crucial for meeting quality standards and application requirements.

  7. Take-off System:The take-off system pulls the extruded PVC sheet away from the die and through the cooling process. It may include rollers or belts to control the speed and tension of the sheet.

  8. Cutting System:The PVC sheet is cut to the desired length using a cutting system. The cut sheets can be rolled or stacked for further processing or packaging.

  9. Winding or Stacking System:The finished PVC sheets are either wound onto rolls or stacked, depending on the specific requirements of the end-use applications.

  10. Control Panel:The control panel houses the controls and settings for the extruder machine. It allows operators to monitor and adjust parameters to ensure optimal production.

Components of a PVC Sheet Extruder Machine:

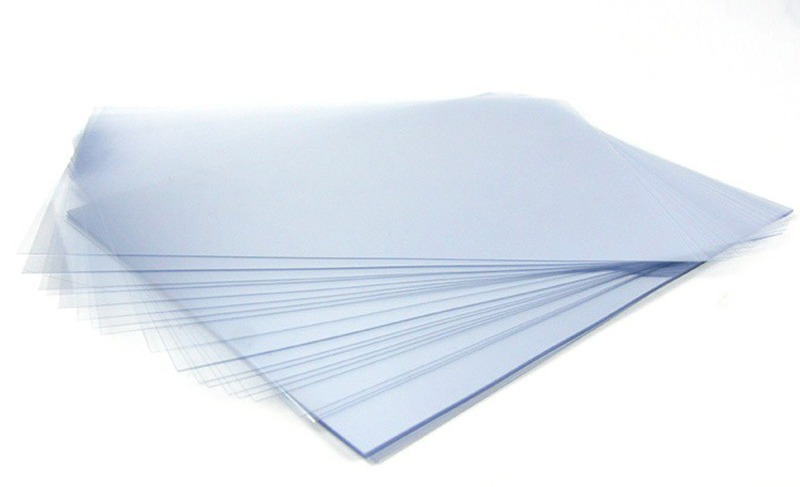

PVC (polyvinyl chloride) sheets find a wide range of applications across various industries due to their versatile properties.

1. Construction and Building Materials

2. Signage and Displays

3. Thermoforming

4. Advertising and Printing

5. Automotive Industry

6. Point-of-Purchase (POP) Displays

7. Medical Industry

8. Stationery and Office Supplies

9. Home Improvement

10. Electrical Insulation

11. Modelling and Prototyping

12. Educational Materials

13. Aquariums and Vivariums

14. Furniture

15. Industrial Applications

PVC sheets are available in rigid and flexible forms, and their specific formulations can be tailored to meet the requirements of different applications. The versatility, cost-effectiveness, and wide range of available formulations contribute to the popularity of PVC sheets across diverse industries.
